Lincoln's Patent
In 1849, a few months after his only term in Congress ended, Abraham Lincoln patented a way to lift a stranded steamboat over a sandbar with air. He is still the only American president to hold a patent.
Watch the episode
Operate the invention
This is the model from the episode, built from Lincoln's own drawings. Turn the shaft and watch the spars drive the chambers down into the river, open them like bellows and fill them with air. Drag to look around, and pinch or scroll to zoom.
Full-size figures scale this reconstruction to a 140 ft steamboat, as Ian de Silva scaled Lincoln's original model (Journal of the Abraham Lincoln Association, 2018). They are estimates from the reconstruction's proportions, which follow the patent's drawings; the patent itself gives no dimensions. De Silva's own estimate, from the chambers he measured on the surviving model, is about 15 inches of lift from 4,130 ft³ of air. Lengthen the check ropes here and you get close to it.
The parts, in Lincoln's letters
- A
- Buoyant chambers: stiff tops and bottoms, sides of india-rubber cloth, so they fold flat or open to hold air.
- B
- Boxes on the guards (the wide deck overhanging the hull) that hold the folded chambers.
- C
- The main shaft, running the length of the boat just under the upper deck, turned by the steam engine or by hand.
- D
- Spars that slide through each chamber's top and are fixed to its bottom.
- f
- Ropes wound around the shaft, running over rollers and down to the spars, tied at i.
- e
- Check ropes that catch the chamber tops, so the chambers open as their bottoms are driven down. Their length sets how deep the chambers go.
- m
- Openings in the chamber tops that let air in and out.
Read the original patent

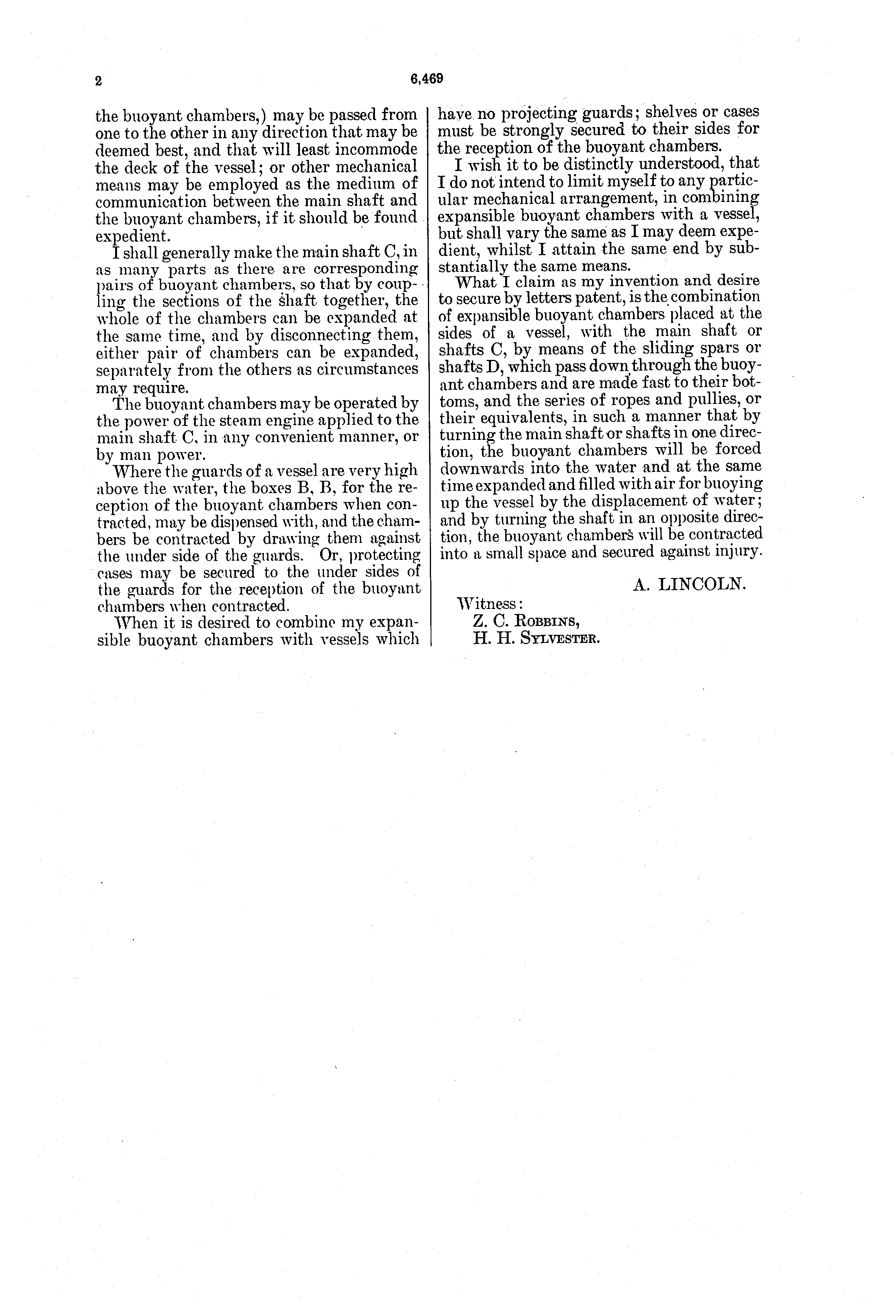

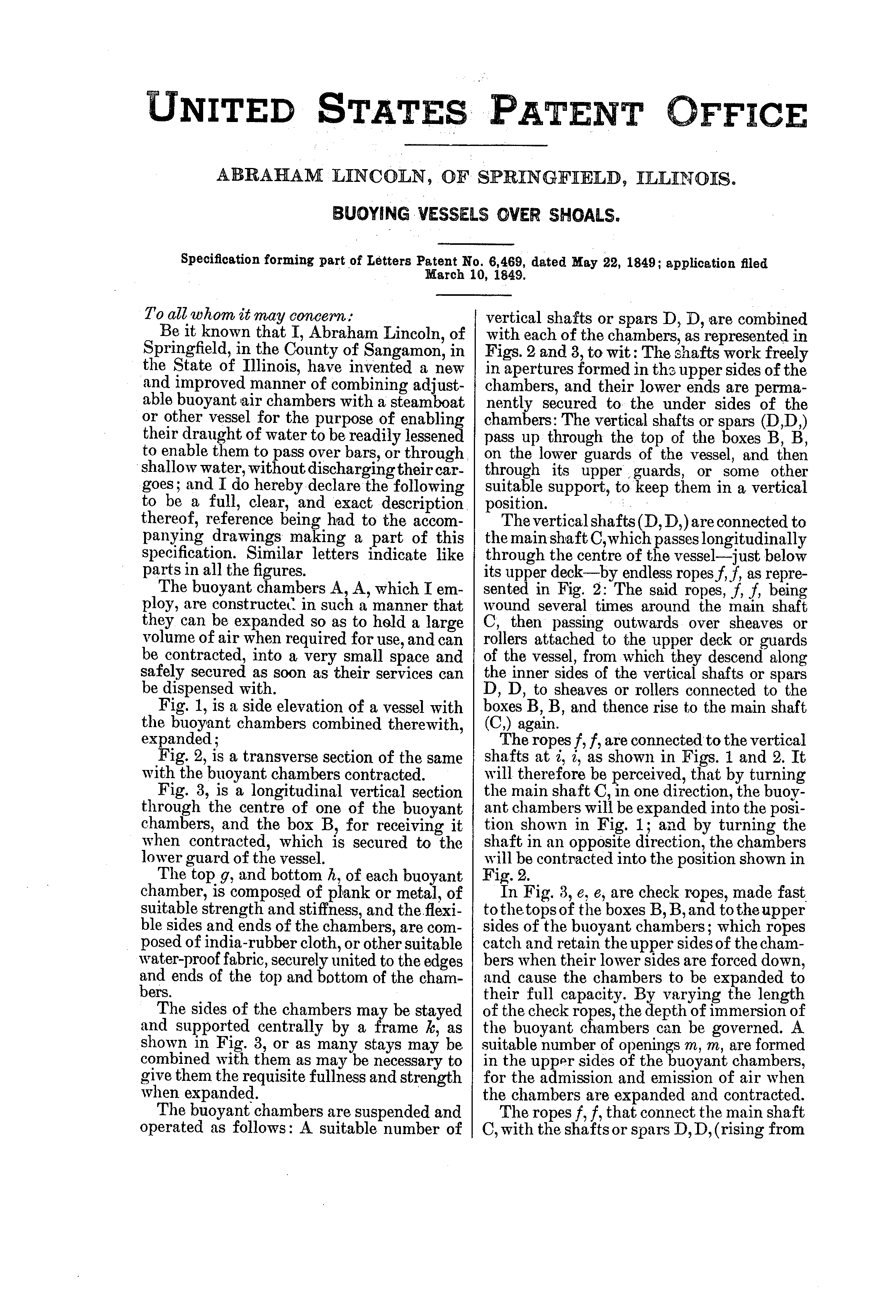

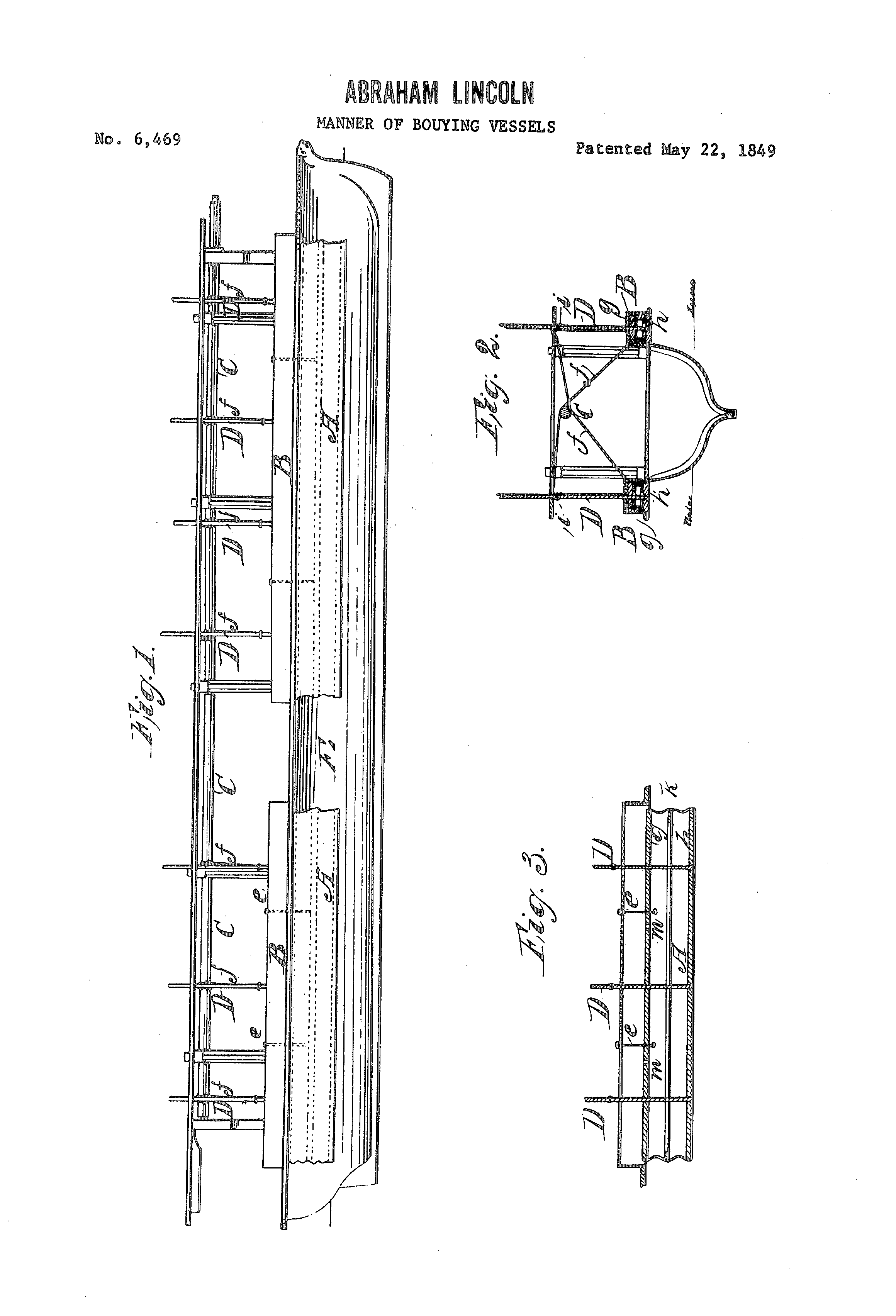

The patent is two pages of text and one sheet of drawings. It is in the public domain. Click a page for full resolution.
Download the patent (PDF, 230 KB) · Google Patents record · Applied for 10 March 1849, granted 22 May 1849.
